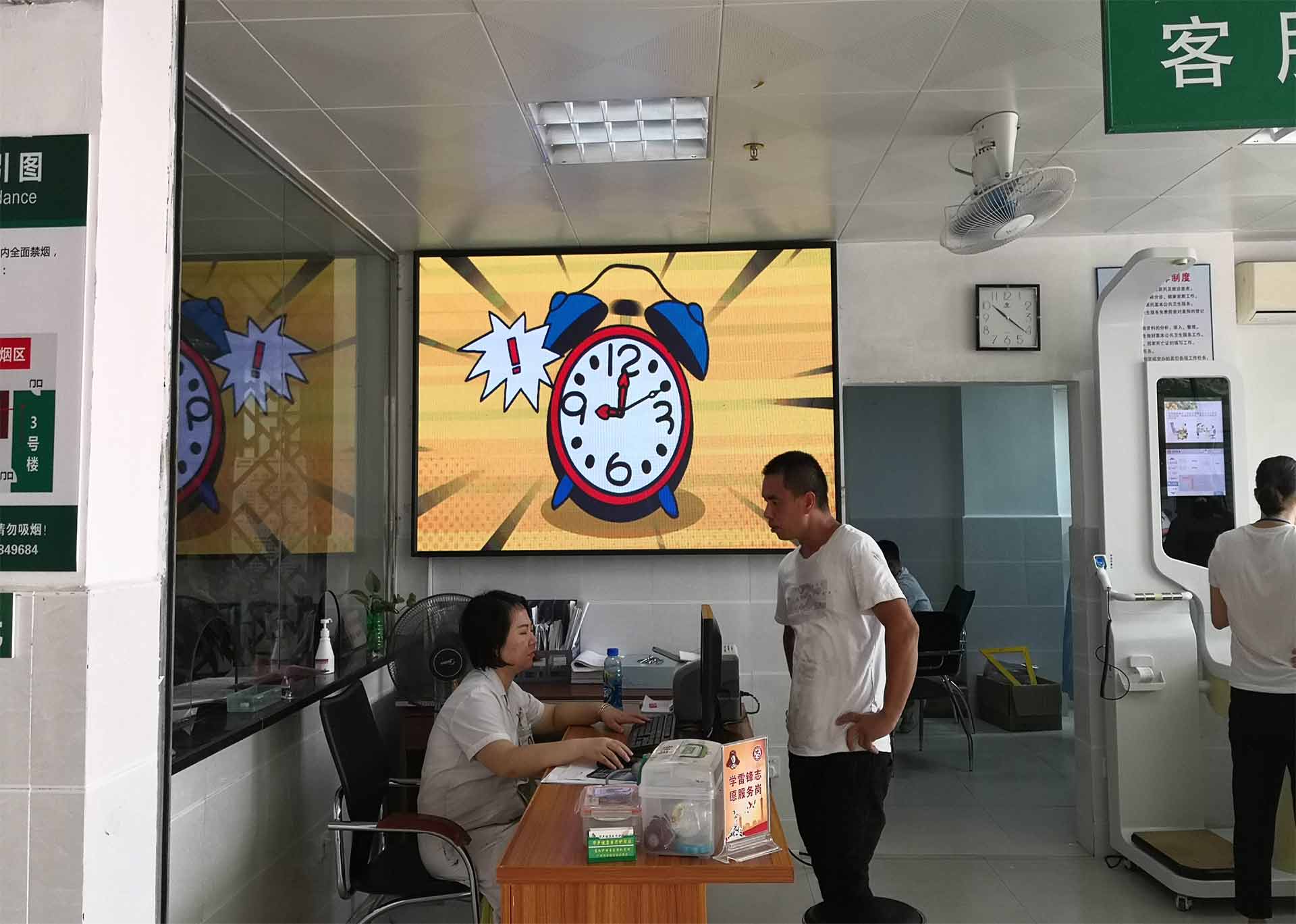

室内小间距P1.875

    室内小间距P1.875



P1.875三合一表贴全彩

MAIN TECHNICAL PARAMETERS FOR INDOOR LED DISPLAY(PITCH1.875)

单元板参数

技术参数    Technical parameters

单位UNIT

参数值( parameters values

物理点间距  Pixel pitch

MM

1.875

模块尺寸    Panel size

MM

L240*H120*T18

物理密度    Physical density

/M2

284400

像素基色    Pixel configuration

R/G/B

1,1,1

驱动方式    Driving method



1/32恒流扫描Constant current 1/32scan

LED封装方式(LED Encapsulation

SMD

1515黑灯

显示分辨率  Display resolution

DOTS

128X64=8192

模块重量    Module weight

KG

0.19

模块接口    Module port



HUB-HD01

模块工作电压(Module working voltage

VDC

5

模块功耗    Module consumption

W

15~20

屏体参数

模块视角    Viewing angle

Deg.

140

最佳视距    Option distance

M

2-30

驱动器件    Driving device



2053/2038S

每平米模块数(Every square metre module

PCS

34.7

最大功耗    Maximum power

W/ M2

700

换帧频率    Frame Frequency

HZ/S

60

刷新频率     Refresh frequency

HZ/S

2053/3480 , 2038S/1920

白平衡亮度   Equilibrium brightness

CD/ M2

800~1000

工作环境温度(Working environment temperature

0C

-10~60

工作环境湿度(Working environment humidity

RH

10%70%

 屏体工作电压   Display working voltage

VAC

AC4654HZ220V±15%/110V±15%

白场色温       Colour temperature



8500K-11500K

灰度/颜色      Gray scale/color



16.7M color

输入信号       Input signal



RF\ S-Video\ RGB etc

控制系统       Control system



PCTV非线性卡nonlinearity cardDVI显卡display cardLinsn control system,灵星雨

平均无故障时间 Mean free error time

HOURS

5000

寿命           Life

HOURS

100000

 杂点率         Lamp failure frequency



0.0001

抗干扰         Antijam



IEC801

安全           Safety



GB4793

抗电击         Resist the electricity



1500V last 1min无击穿及飞狐No breakdown

屏体重量       Steel box weight

KG/ M2

40(标准箱体standard steel box

漏电电流       Earth leakage current

mA



IP等级         IP rating



The back IP40The front IP50

箱体尺寸(参考)(Steel box size

mm

L240Xh240x80
